Ringlock Scaffolding
Ringlock scaffolding with rosette joints and wedge pins. Standards in Q355, hot-dip galvanized finish. Request a quote.

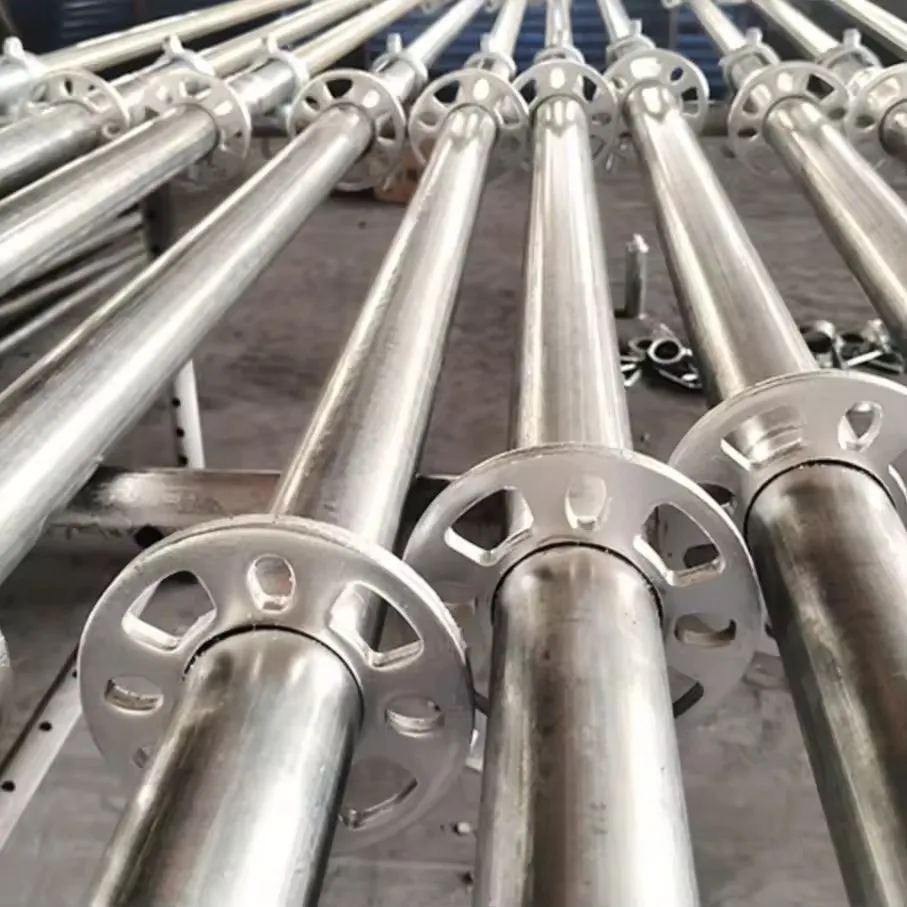

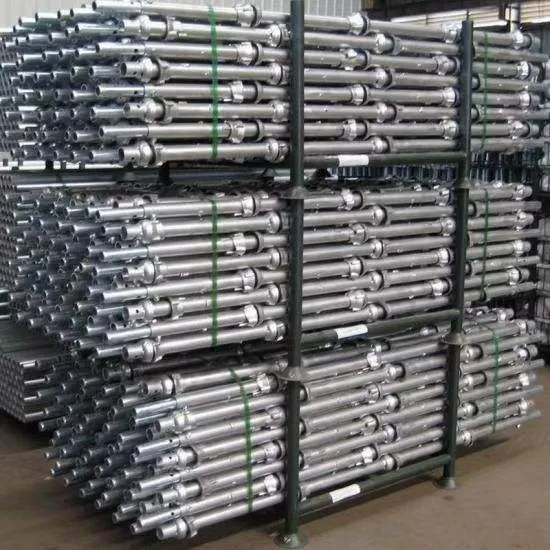

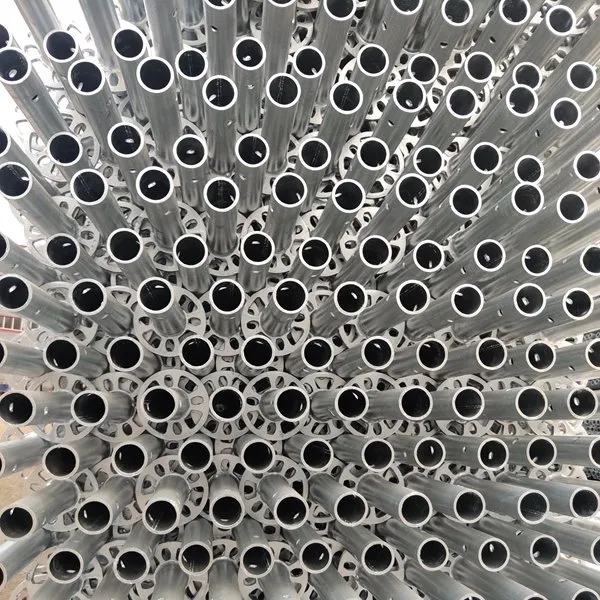

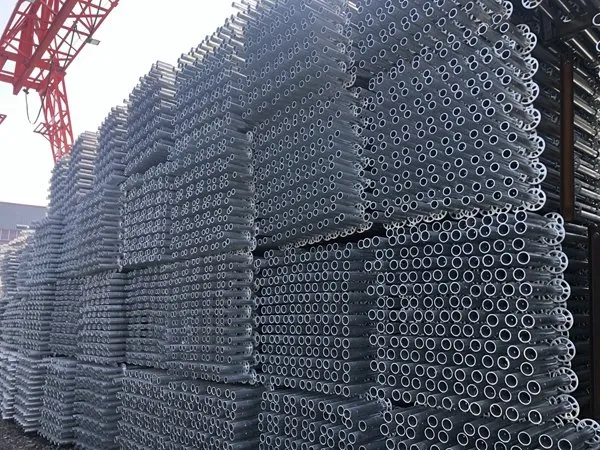

Ringlock standards (verticals)
| Length | Rosettes | Tube | Steel | Finish |
|---|---|---|---|---|
| 0.5 m | 1 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.0 m | 2 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.5 m | 3 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.0 m | 4 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.5 m | 5 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 3.0 m | 6 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.

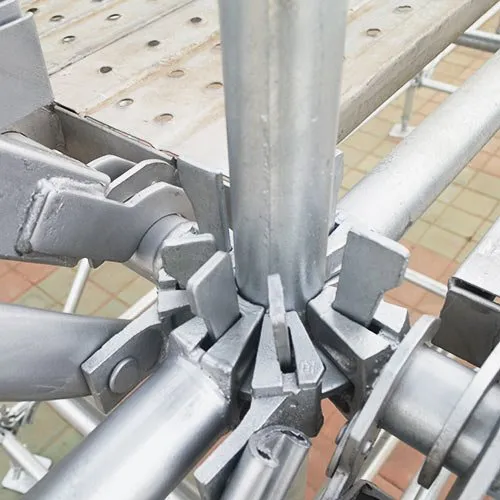

How the rosette joint works

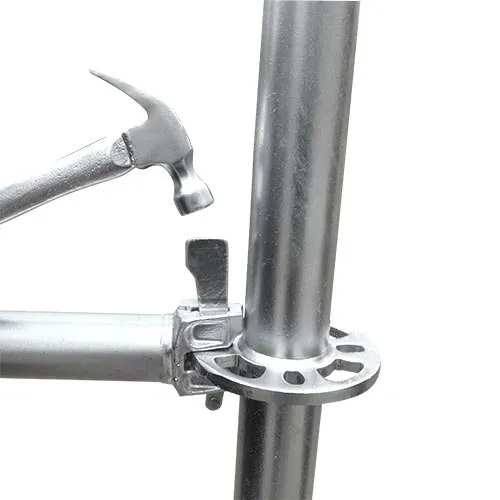

Each ringlock standard has a rosette with 8 holes, spaced every 500 mm along the tube. Ledgers and braces connect to the rosette with a wedge pin. The pin is driven in with a hammer only. No bolts are used.
The wedge pin locks the ledger end into the rosette. This gives a rigid connection without loose parts. Dismantling is just as quick: knock the pin out and lift the ledger off. Ringlock belongs to the modular scaffolding family, and some buyers call it a ring lock scaffolding system or ring scaffolding.

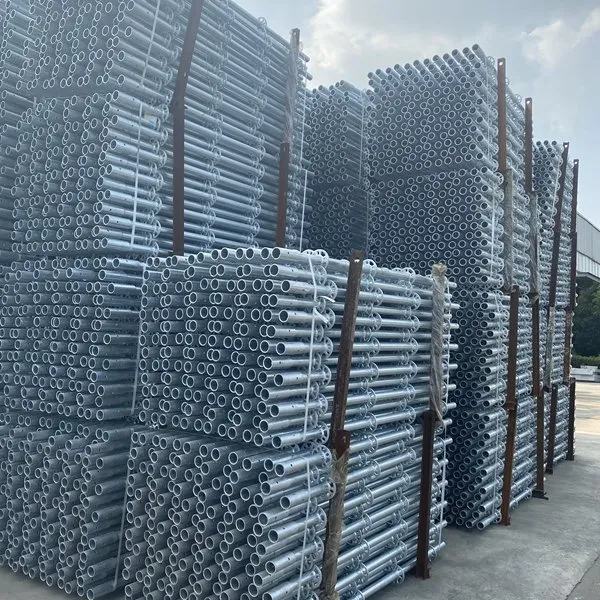

Ringlock ledgers (horizontals)
| Bay length | Tube | Steel | End fitting |
|---|---|---|---|
| 0.3 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.6 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.9 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.2 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.5 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.8 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.1 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.4 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 3.0 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
Ringlock diagonal braces
| Bay x lift | Tube | Steel |
|---|---|---|
| 0.6 x 1.5 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 0.9 x 1.5 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 1.2 x 1.5 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 1.5 x 1.5 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 1.8 x 1.5 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 1.8 x 2.0 m | Ø33, Ø42 or Ø48 mm | Q235 |
| 2.4 x 2.0 m | Ø33, Ø42 or Ø48 mm | Q235 |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
What to fix before asking for a quote
- Tube series
- Confirm 48 series or 60 series standards. This sets rosette size and ledger end type.
- Wall thickness
- 2.75 mm, 3.0 mm, or 3.2 mm. Custom thickness is available.
- Finish
- Hot-dip galvanized is standard. Painted or powder coated in red, orange, blue, or yellow is optional.
- Bay and lift
- Give bay width and lift height for ledgers and diagonal braces. Standard ledger lengths are 0.3 m to 3.0 m.
- Quantity list
- List standards, ledgers, braces, and accessories by size and piece count. Send the list with your inquiry.
Ringlock supply from China: common questions
What tube diameters do you make for ringlock standards?
We make 48 series and 60 series standards. The 48 series uses a 48.3 mm tube, and the 60 series uses a 60.3 mm tube. Both are available in standard lengths from 0.5 m to 3.0 m.
Can I get ringlock scaffolding with a painted finish instead of galvanized?
Yes. Hot-dip galvanized is the main finish, but painted or powder coated is available. Colors include red, orange, blue, and yellow. Specify the finish when you request a quote.
Do you supply diagonal braces for any bay and lift combination?
We make diagonal braces to match your bay width and lift height. Give us the bay and lift dimensions, and we will quote the correct brace length.
What information do you need to quote ringlock scaffolding?
Send a quantity list with tube series, wall thickness, finish, bay and lift, and piece counts for each item. We will reply with a quotation based on your list.
Get a quotation with matching dimension sheets
Send your bill of quantities or drawings. We reply within 24 hours.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
