Scaffolding Base Jack
A scaffolding base jack supports the standard at ground level and adjusts for uneven terrain. Choose stem diameter, length, and plate size to match your system.
Base jacks and U-head jacks
| Item | Stem | Stem length | Plate |
|---|---|---|---|

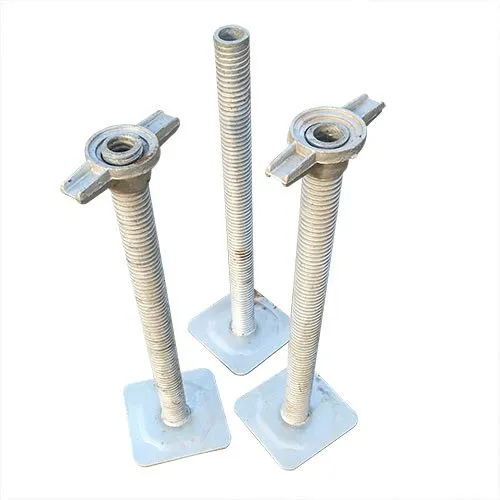

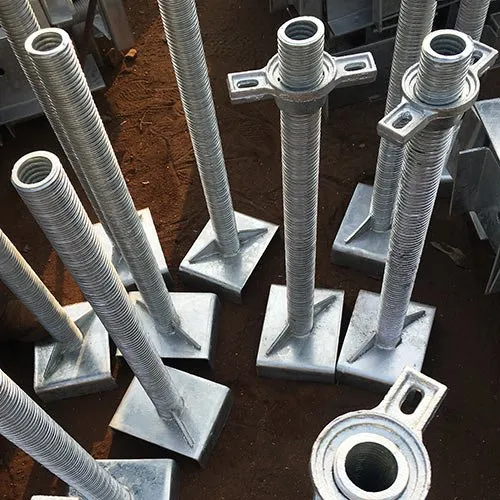

| Base jack | Ø38 or Ø48 mm | 500 / 600 mm | Square base plate |
| U-head jack | Ø38 or Ø48 mm | 500 / 600 mm | U-head, reinforced version available |
| Jack nut | To match stem | - | Cast, two handles |
Nominal dimensions. Plate size and stem type are confirmed on the drawing.
Base Jack vs U-Head Jack
A scaffolding base jack sits under the standard at ground level. Its threaded stem adjusts to level the scaffold on uneven ground. The base plate spreads load onto the ground. Some buyers call these scaffolding leveling jacks. Some buyers also refer to the base jack with its plate as base plate scaffolding.
A U-head jack sits on top of the standard. Its U-shaped head holds a ledger or beam. Use it to fine-tune height under formwork or to support a load-bearing member. Some buyers refer to these as scaffolding screw jacks.
What to Specify
- Stem diameter
- Common sizes are 38 mm and 48 mm. Match the stem to the inner diameter of your standard.
- Stem length
- Typical lengths are 500 mm and 600 mm. Longer stems give more adjustment range.
- Solid or hollow
- Solid stems are heavier and stiffer. Hollow stems save weight but may have lower capacity.
- Plate size
- Base plates vary in width and thickness. A larger plate spreads load over more ground area.
- Finish
- Hot-dip galvanized is standard. Painted or powder coated options are available.
Get a quotation with matching dimension sheets
Send your bill of quantities or drawings. We reply within 24 hours.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
